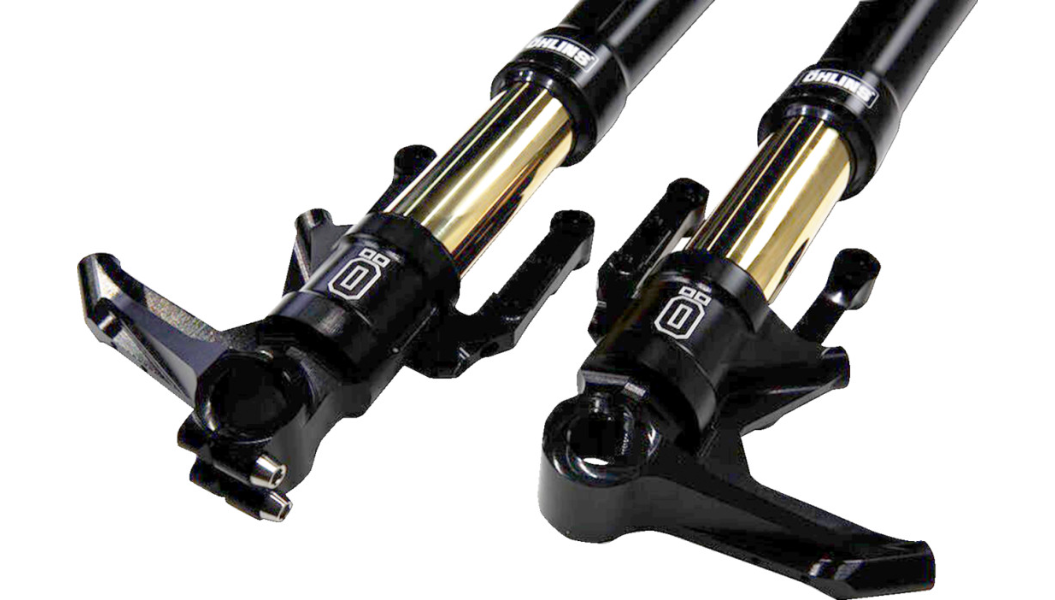

Ohlins 48 mm Blackline Front Fork Legs for '23-Up Harley Davidson CVO FLTR and CVO FLHX Models- Black (FGRT307)
The American V-Twin 48 Blackline Fork (FGRT 307) marks the debut of Öhlins’ front-end suspension technology for Harley-Davidson. It features a weight- and stress-optimized fork bottom design for an ultra-smooth, comfortable ride, along with updated Öhlins logos to enhance the Blackline aesthetic. Incorporating cutting-edge technology, it is designed to elevate the riding experience for Harley-Davidson enthusiasts.
Drawing on our brands strong racing heritage, the fork incorporates Öhlins’ 30-mm NIX damping system, which isolates compression and rebound damping for enhanced precision and stability. The fork’s inner tubes are also treated with a titanium nitrate coating to reduce friction, contributing to an ultra-plush ride quality. Upgrade your bike with this must-have front fork and experience the difference of Öhlins suspension.
- 30 mm NIX damping system
- Isolates compression and rebound damping for enhanced precision and stability
- Weight and stress optimized fork bottom design
- Titanium nitrate coating
Specs
Damp tech: FGRT
Length: 730 mm
Oil: Öhlins 01309
Spring: 04744-12
Spring Rate: 12 N/mm
Stroke: 117 mm
Notes
- Type: 48 mm Fork
- Spring rate included: 12 n/m
- Includes Spring: Ohlins Part # 08790-12
- Stroke length: 4.606"
- Weight range: 150 lb – Max 500 lb
Fitments (Does not fit standard Road/Street Glide)
| 2024-2025 | Harley-Davidson | FLTRXSTSE CVO Road Glide ST |
| 2023-2025 | Harley-Davidson | FLHXSE CVO Street Glide |
| 2023-2025 | Harley-Davidson | FLTRXSE CVO Road Glide |
