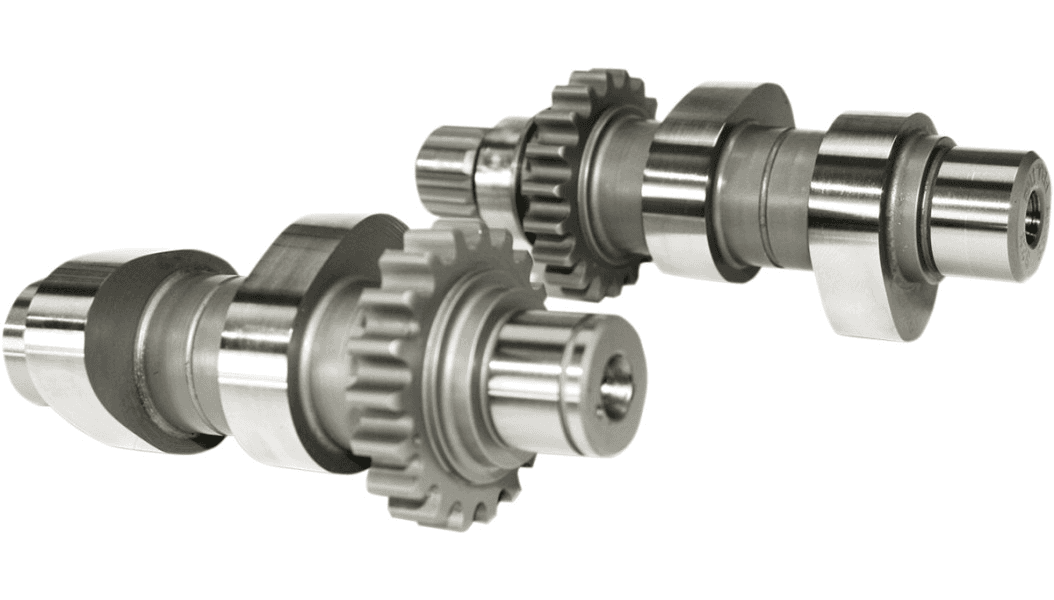

Feuling 594 Chain Drive Reaper Cam Set for '07-17 Harley Davidson Twin Cam Models
- Fierce performing camshaft for an array of engine sizes, large displacement 103", 110" and 124" engines looking for a superior torque band with excellent horsepower gains in heavy bikes (2200-6250 rpm)
- Smaller high-revving displacement 95" style engines in lighter bikes looking to twist the throttle and tap into some horsepower (2500-6800 RPM)
- Large displacements respond well to increased compression ratio and smaller displacements will require it
- 594 cams require high-performance valve springs, pushrods, lifters, carburetor or throttle body work, performance exhaust, intake and clutch
- Made in the USA
Disclaimer: This is a RACE ONLY part Parts designated as Race Only are for use only on vehicles used for competition racing and are not for use on vehicles registered for use on public roads. Sale and/or installation of Race Only parts in any way inconsistent with this warning is prohibited and may result in enforcement by the U.S EPA under the federal Clean Air Act. RACE ONLY PARTS ARE NOT LEGAL FOR SALE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES. NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EPA POLLUTION CONTROLLED MOTOR VEHICLE.
Specs
Product Name Camshaft
Type Chain
Application Intake / Exhaust
Model Reaper
Grind 594 Series
Intake Lift 0.594"
Intake Open 19°
Intake Close 56°
Intake Duration 255°
Intake Lift at TDC 0.190"
Intake Lobe Centerline 108.5°
Exhaust Lift 0.604"
Exhaust Open 64°
Exhaust Close 16°
Exhaust Duration 260°
Exhaust Lift at TDC 0.167"
Exhaust Lobe Centerline 114°
Units Pair
Riding Style Street
