Wossner Anodized Crown Piston Kits for '17-Up Harley Davidson M8 Models
Forged from aerospace-grade aluminum alloys and heat-treated for strength and durability using Wossner’s state-of-the-art heat treatment process. CNC-machined using MAZAK® advanced technology maintaining high precision and accuracy through every machining step. Reduced product distortion and variability.
Enhanced piston pin oiling slots, radial boss machining and annular grooves for improved wrist pin lubrication. Piston skirt profile and camming are specifically tailored to each application for reduced friction, smooth operation and reduced noise from rockover. Piston skirts are coated for reduced friction and improved break in performance.
Select applications have coating treatments to protect from harsh tuning environments. Piston rings are made from premium alloy steel and feature treatments to improve ring seal and extend wear life. Kits include pistons, piston rings, piston pins and retaining clips.

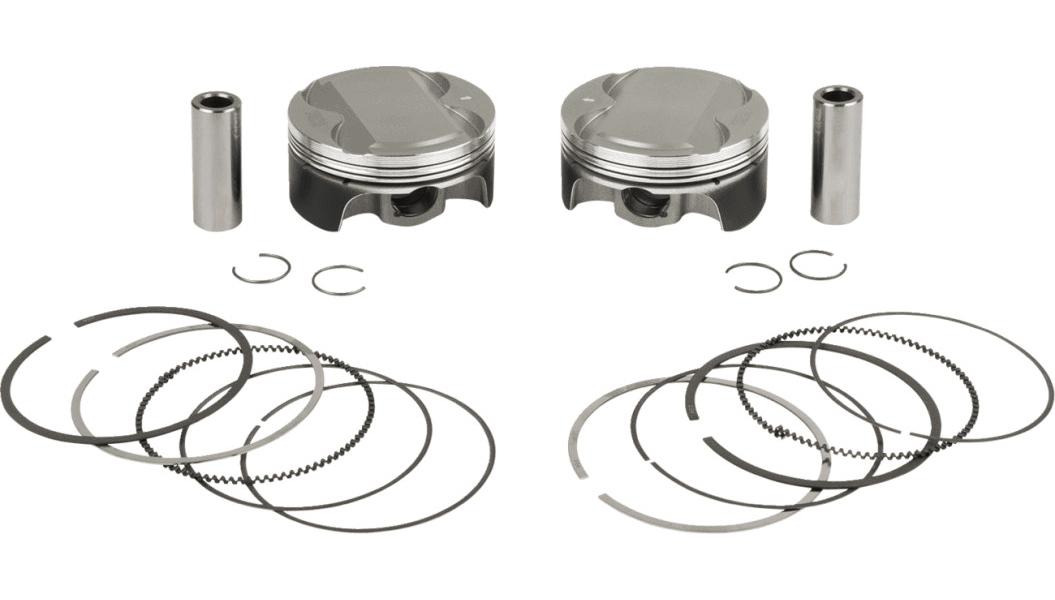

Kit Includes:
• 2x Piston
• 2x Piston Ring Sets
• 2x Piston Pin
• 2x Retaining Clip Set
FEATURES

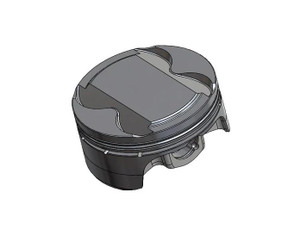

- Crown is anodized to improve resistance to extreme heat
- Tested and proven to improve thermal diffusivity by up to 10%
- Hardcoat anodize treatment enhances the piston's abilities to manage heat and wear
- Ring groove wear is improved with anodize treatment ability to handle sliding wear as compared to non-treated surfaces
| SKU# | Cubic Inch Displacement and Stroke | Valve Pocket Specifications |
| 0910-6681 | 107" CID - 4.375" Stroke | Intake Diameter: 1.780" Intake Depth: 0.200" Intake Angle: 27.000° Exhaust Diameter: 1.780" Exhaust Depth: 0.200" Exhaust Angle: 27.000° |
| 0910-6683 | 117" CID - 4.375" Stroke |
Intake Diameter: 1.780" |
| 0910-6684 | 119" CID - 4.375" Stroke |
Intake Diameter: 1.780" |
| 0910-6682 | 114" CID - 4.500" Stroke | Intake Diameter: 1.780" Intake Depth: 0.200" Intake Angle: 27.000° Exhaust Diameter: 1.780" Exhaust Depth: 0.200" Exhaust Angle: 27.000° |
| 0910-6685 | 120" CID - 4.500" Stroke |
Intake Diameter: 1.780" |
