S&S Cycle 475 Camshaft Kit with Dynojet PV-3 for '17-19 Harley Davidson Touring (Select Chain or Gear Drive)

S&S Cycle 475 Camshaft Kit with Dynojet PV-3 for '17-19 Harley Davidson Touring (Select Chain or Gear Drive)

Camshaft Kit with PV-3 Tuner - 475C Chain Drive 330-0725
Camshaft Kit with PV-3 Tuner - 475G Gear Drive - 330-0726

• Providing power from 2200-5200 RPM in engines with displacement from 107-135 cubic inches
• No need for expensive dyno tuning
• Display vehicle data channels in real-time
• Weather-resistant for use in all conditions
• High contrast display, viewable in direct sunlight

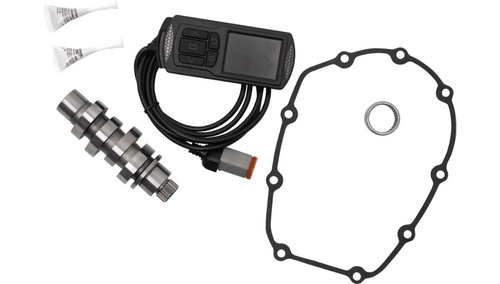

• Kit includes 475 cam, Dynojet PV-3 tuner, all required bearings, o-rings and hardware
• Made in the USA

Notes Designed to work specifically with S&S Stealth air cleaner kit and MK45 mufflers with a stock header or S&S Eldorado exhaust system.

Specs

Grind 475
Intake Lift 0.475"
Intake Open 6.2° Front, 2.2° Rear
Intake Close 27.2° Front, 31.2° Rear
Intake Duration 213.5° Front, 213.5° Rear
Intake Lift at TDC 0.107" Front, 0.093" Rear
Intake Lobe Centerline 100.5° Front, 104.5° Rear
Exhaust Lift 0.475"
Exhaust Open 55.5° Front, 52.2° Rear
Exhaust Close 28.5° Front, 20.2° Rear
Exhaust Duration 263.9° Front, 252.5° Rear
Exhaust Lift at TDC 0.208" Front, 0.170" Rear
Exhaust Lobe Centerline 103.5° Front, 106.0° Rear

DISCLAIMER: Not legal for sale or use in California on any pollution controlled motor vehicles.
