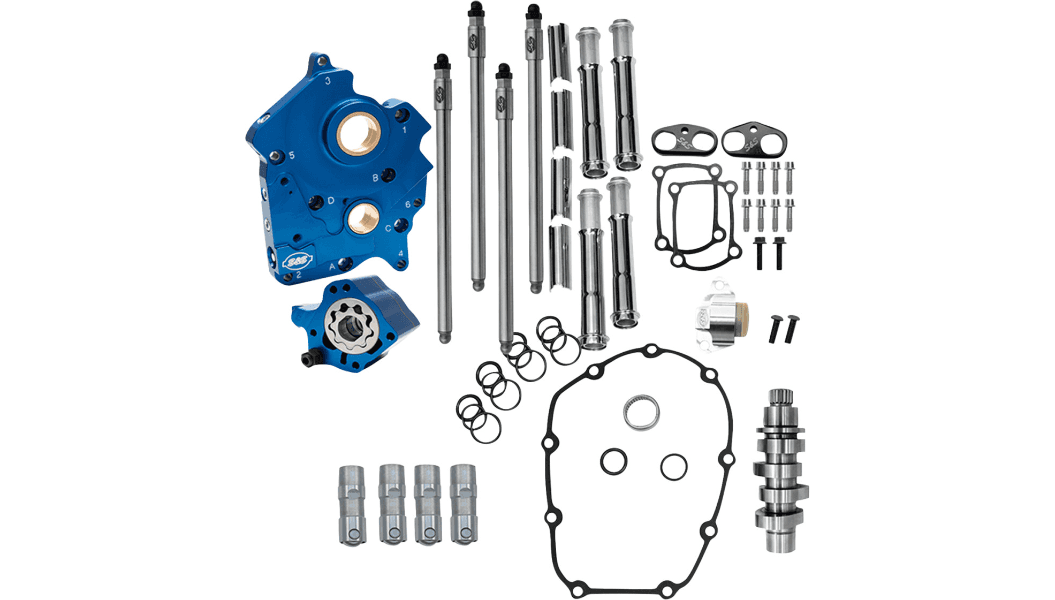

S&S Cam Chest Kit with 496 Cam for '17-23 Harley Davidson Touring Models
Not for '23 CVO Touring Models
496: Bolt-in cam providing power from 2300-6000 RPM in engines from 107-135 cubic inches, maximizing HP without losing torque. Works well with stock or ported heads.
- Oil pump and cam plate is precision machined from billet aluminum
- Passage plugs are removable for servicing
- Independent scavenge sections for flywheel cavity and cam chest
- Debris screens in both scavenge pickups
- Magnet in cam chest to help stop debris from entering oil pump
- Increased oil flow capacity on both the feed and scavenge sides
- Includes updated oil pump and groove for optional OEM oil seal
- Adjustable pressure relief valve is adjustable with the unit installed in the engine
Pushrods:
- Quickee pushrods
Tappets:
- Fast pump up and superior high RPM performance
- Reduced valve train noise from start up to shut down
- Close tolerances for low leak rates
Tappet Cuffs:
- Hard anodized black coating
- Improve tappet stability in high lift and high rpm situations
Specs
Product Name Camchest Kit
Grind 496 Series
Intake Lift 0.485"
Intake Open 7°
Intake Close 40°
Intake Duration 227°
Intake Lift at TDC 0.072"
Exhaust Lift 0.485"
Exhaust Open 48°
Exhaust Close 15°
Exhaust Duration 243°
Exhaust Lift at TDC 0.097"
SKU#'s
- [SKU# 310-1378] Chain Drive - Oil Cooled - Chrome Pushrod Tubes
- [SKU# 310-1379] Chain Drive - Oil Cooled - Black Pushrod Tubes
- [SKU# 310-1382] Gear Drive - Oil Cooled - Chrome Pushrod Tubes
- [SKU# 310-1383] Gear Drive - Oil Cooled - Black Pushrod Tubes
- [SKU# 310-1384] Chain Drive - Water Cooled - Chrome Pushrod Tubes
- [SKU# 310-1385] Chain Drive - Water Cooled - Black Pushrod Tubes
- [SKU# 310-1386] Gear Drive - Water Cooled - Chrome Pushrod Tubes
- [SKU# 310-1387] Gear Drive - Water Cooled - Black Pushrod Tubes
DISCLAIMER: Not legal for sale or use in California on any pollution controlled motor vehicles.
